2002 DRAVO 28 JACKUP

252078 | Not Recognized

$2,500,000 USD

2002 DRAVO 28 JACKUP

Not Recognized

$2,500,000 USD

Locationjersey city, NJ

Equipment #252078

Serial #20

Let us help

Send us a Message

First name is required
Last name is required
Company name is required
Email is required to contact you back

Thanks for contacting us! We'll get back to you soon.

This information will not be shared with any dealer other than those you select. Our collection and use of your personal information

Something must be wrong

Retry or contact us if the problem persists

Subcategory - Not Recognized | image 0
Subcategory - Not Recognized | image 1
Subcategory - Not Recognized | image 2
Subcategory - Not Recognized | image 3
Subcategory - Not Recognized | image 4
Subcategory - Not Recognized | image 5
Subcategory - Not Recognized | image 6
Subcategory - Not Recognized | image 7
Subcategory - Not Recognized | image 8
Subcategory - Not Recognized | image 9
Subcategory - Not Recognized | image 10
Subcategory - Not Recognized | image 11
Subcategory - Not Recognized | image 12
Click to Zoom
Gallery Thumbnail - Subcategory - Not Recognized | image 0Gallery Thumbnail - Subcategory - Not Recognized | image 1Gallery Thumbnail - Subcategory - Not Recognized | image 2Gallery Thumbnail - Subcategory - Not Recognized | image 3Gallery Thumbnail - Subcategory - Not Recognized | image 4Gallery Thumbnail - Subcategory - Not Recognized | image 5Gallery Thumbnail - Subcategory - Not Recognized | image 6Gallery Thumbnail - Subcategory - Not Recognized | image 7Gallery Thumbnail - Subcategory - Not Recognized | image 8Gallery Thumbnail - Subcategory - Not Recognized | image 9Gallery Thumbnail - Subcategory - Not Recognized | image 10Gallery Thumbnail - Subcategory - Not Recognized | image 11Gallery Thumbnail - Subcategory - Not Recognized | image 12
  • Machine Details
  • Additional Information
  • Downloads
  • Terms

Machine Details

Manufacturer

DRAVO

Model

28 JACKUP

Year

2002

Subcategory

Not Recognized

Equipment #

252078

Serial #

20

Location

jersey city, NJ

Additional Information

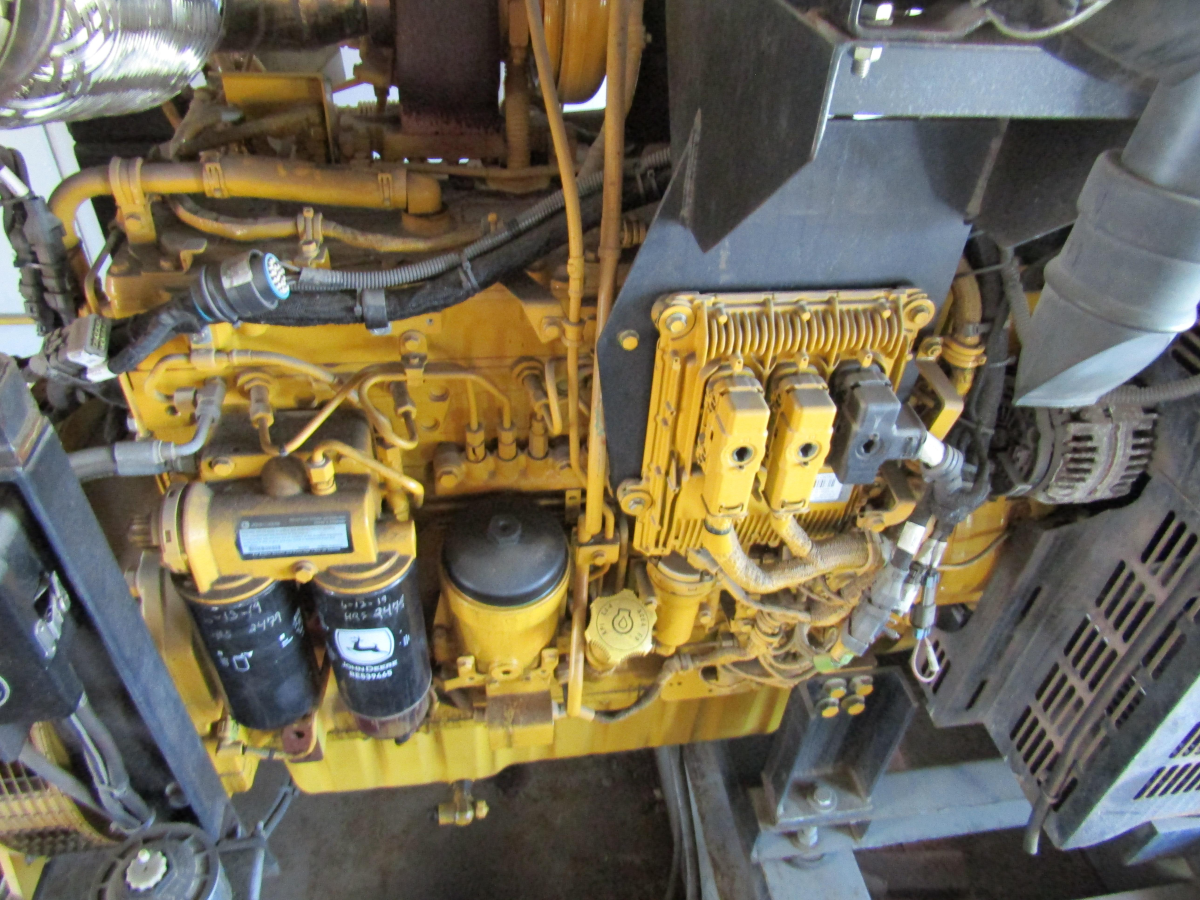

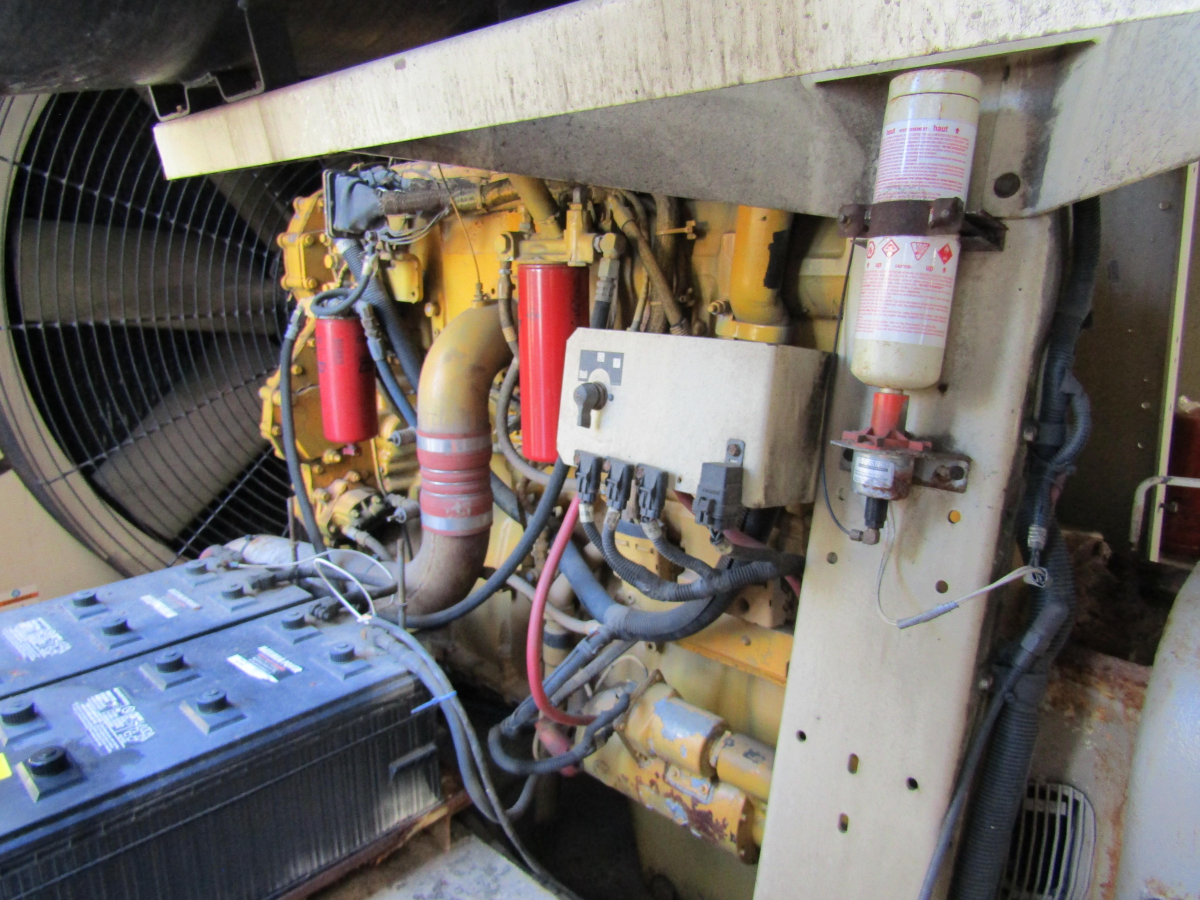

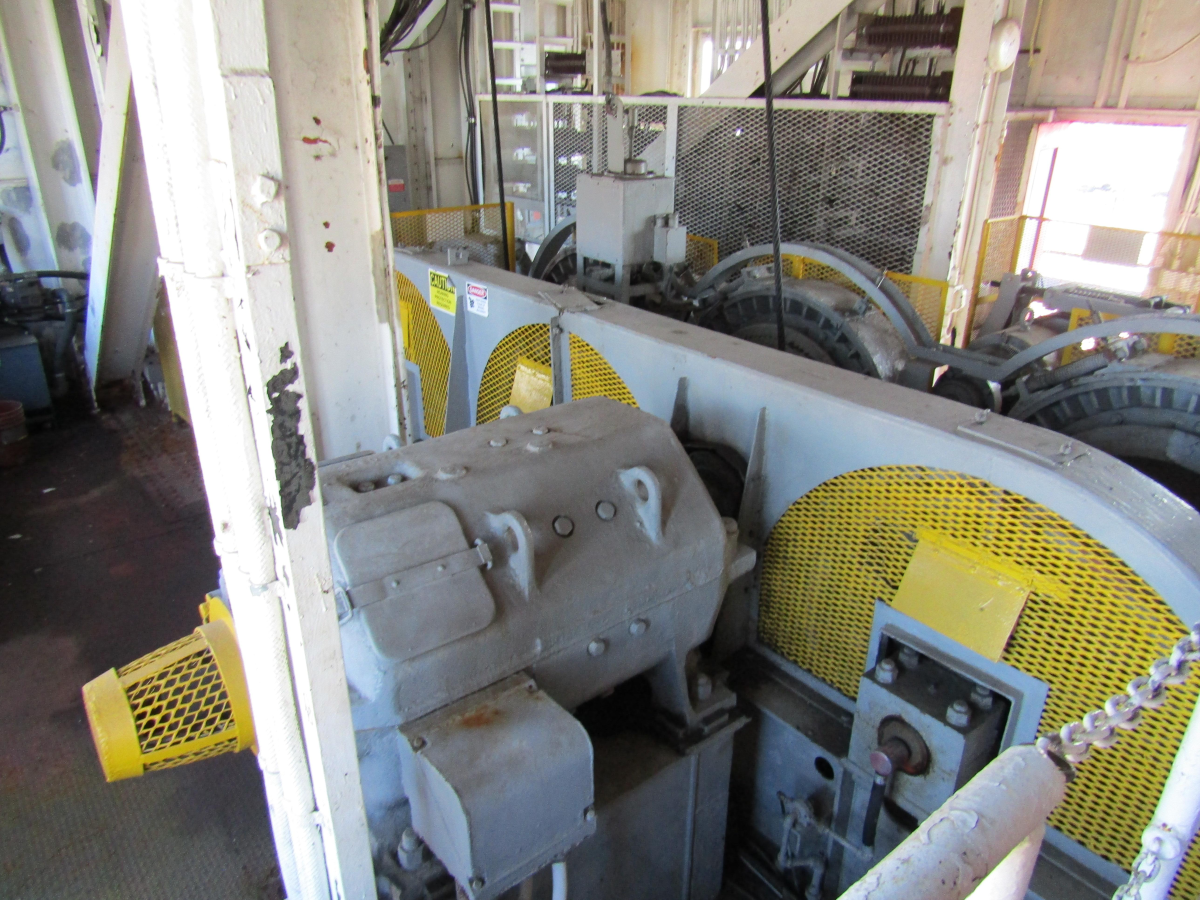

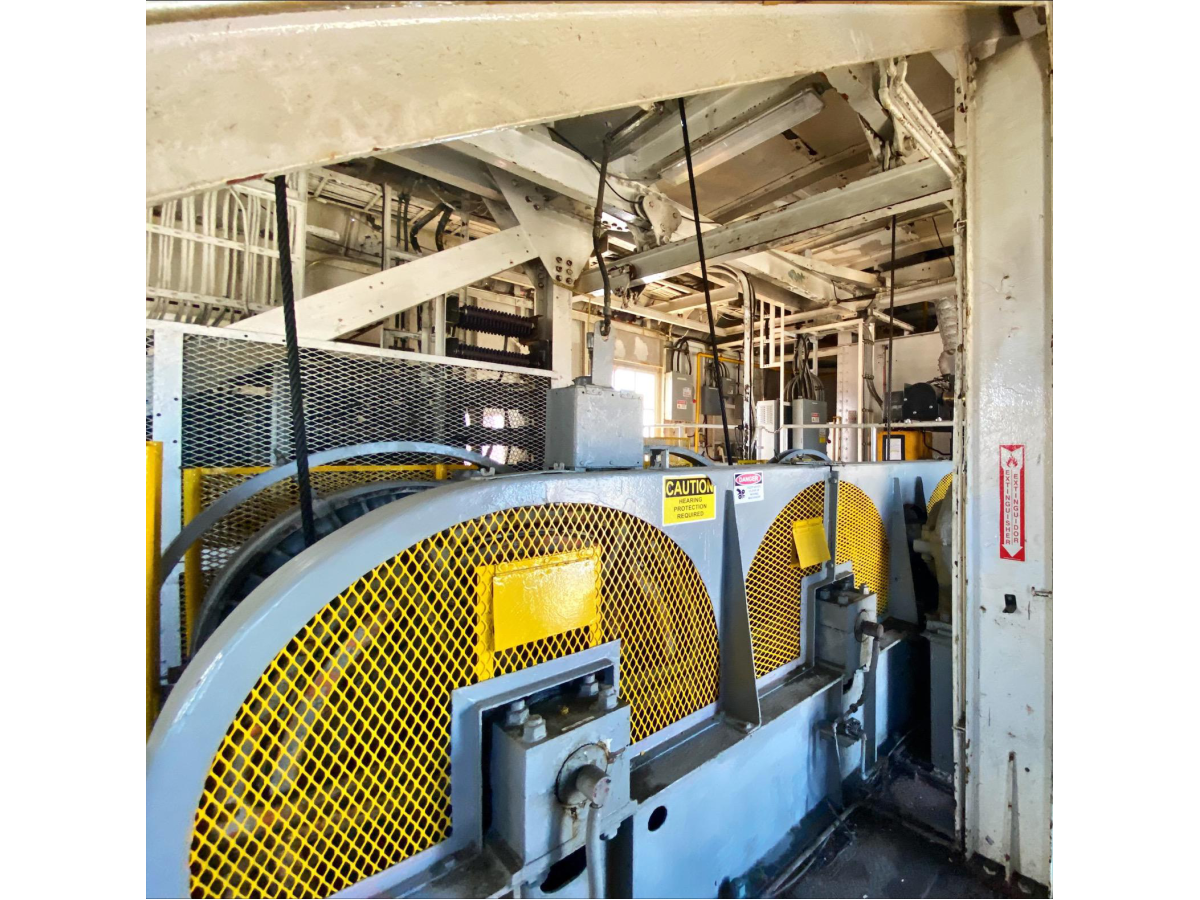

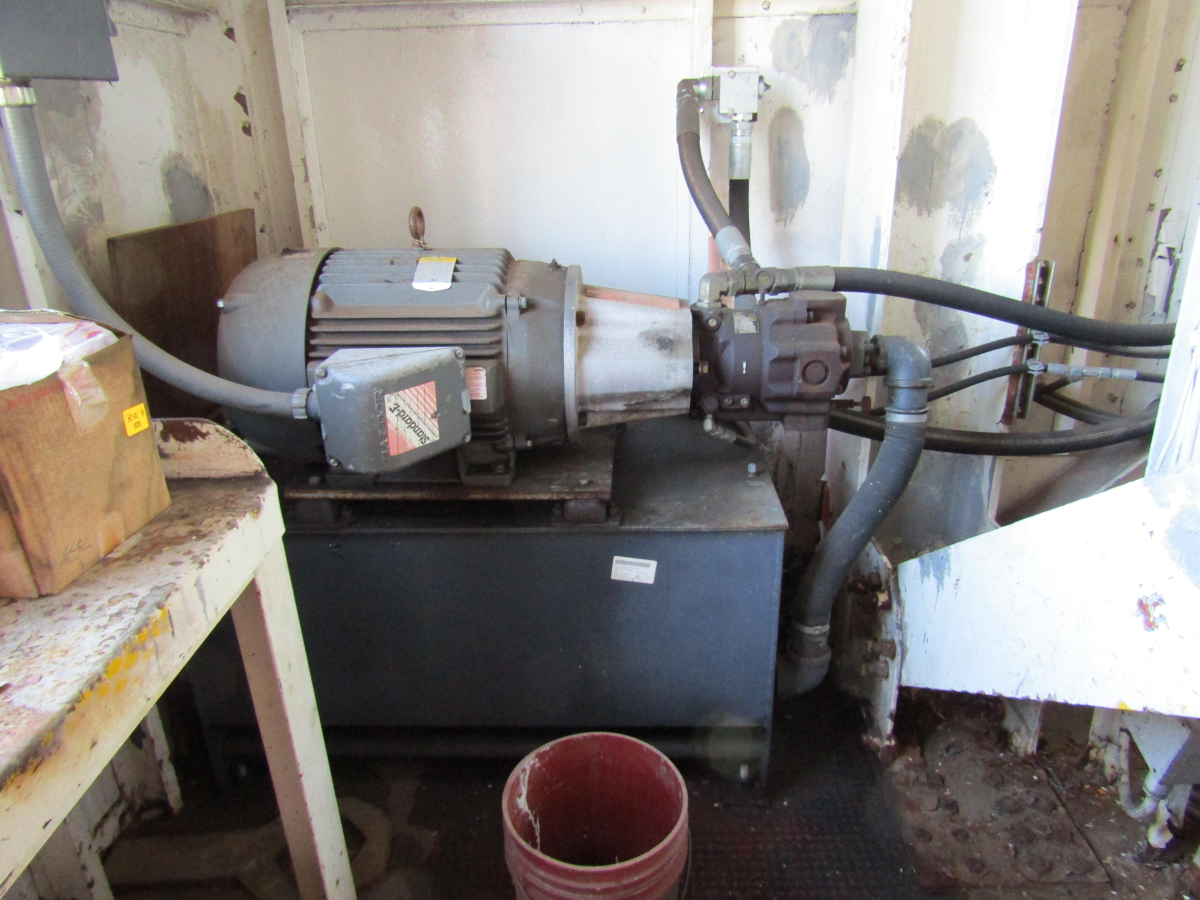

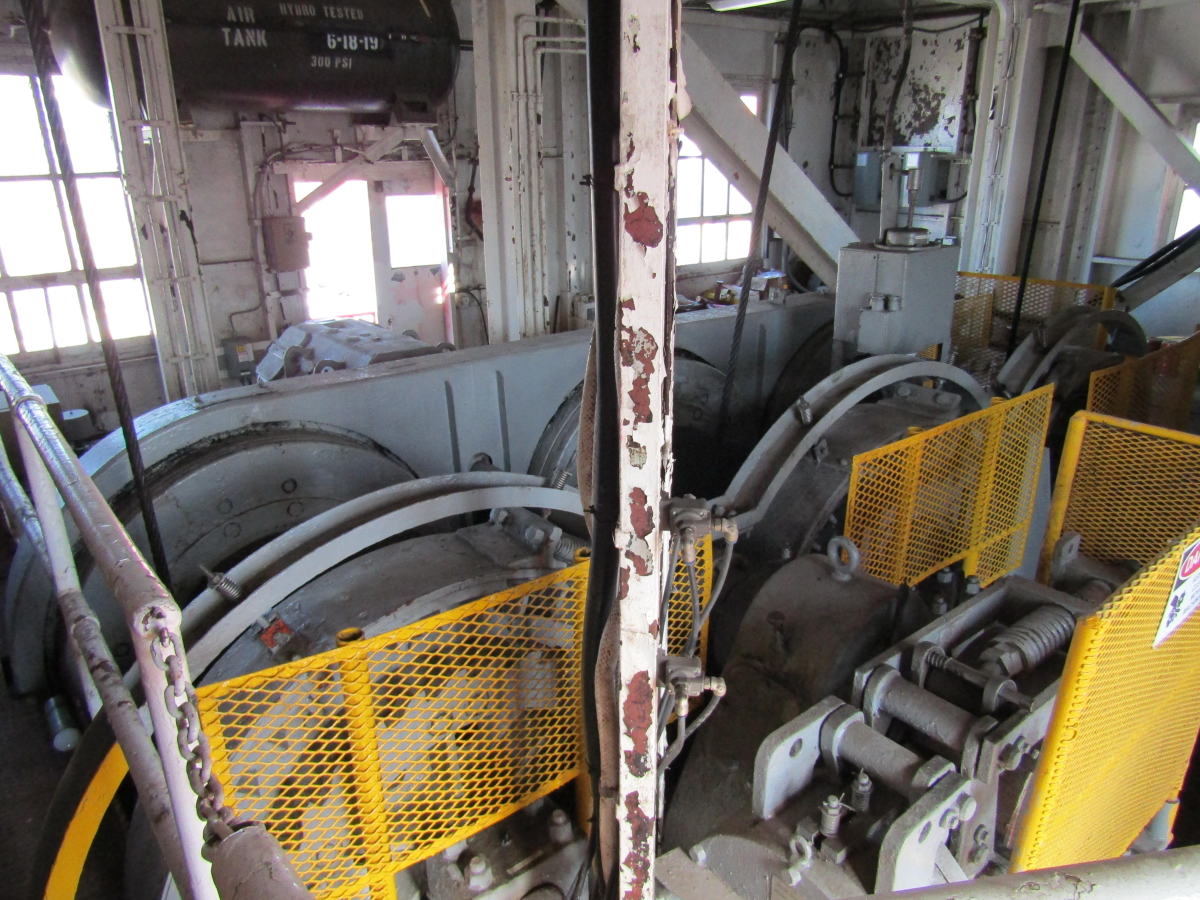

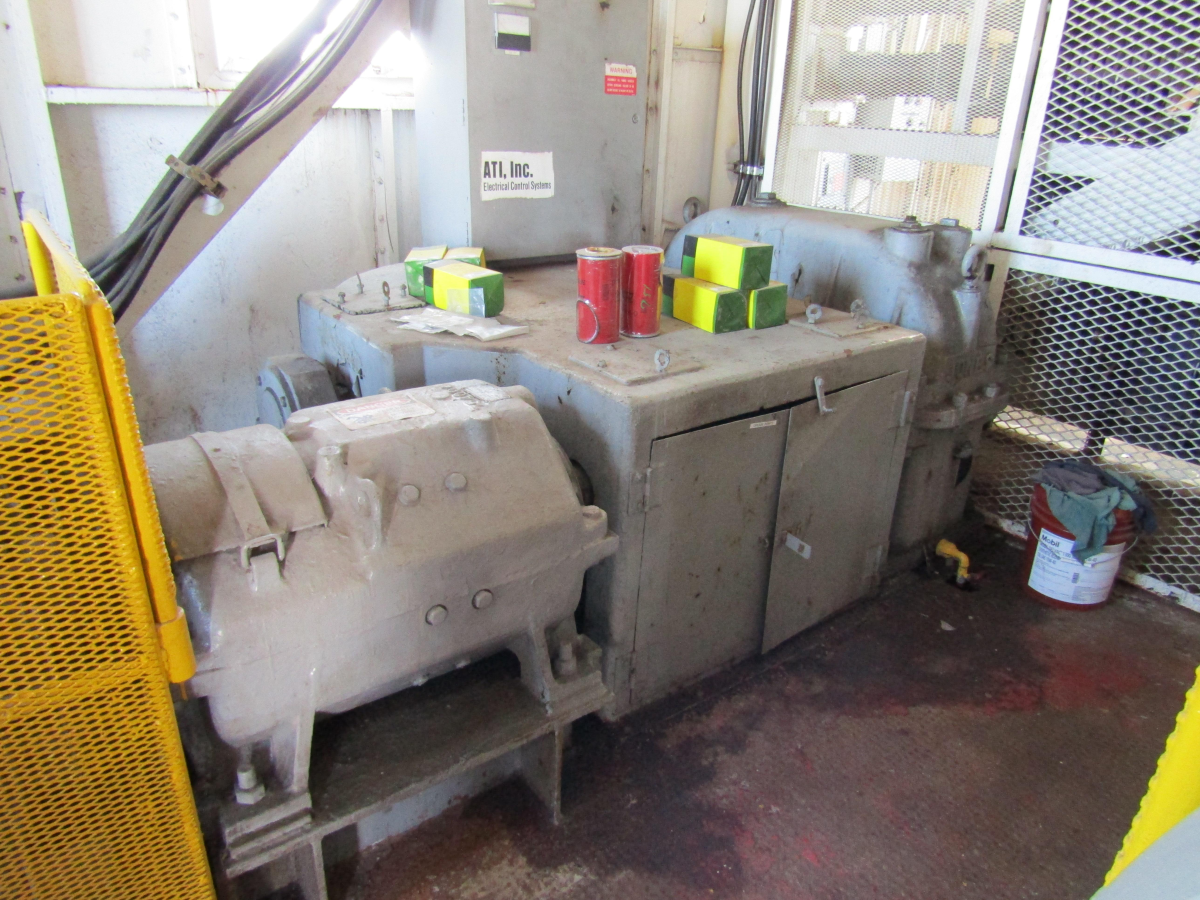

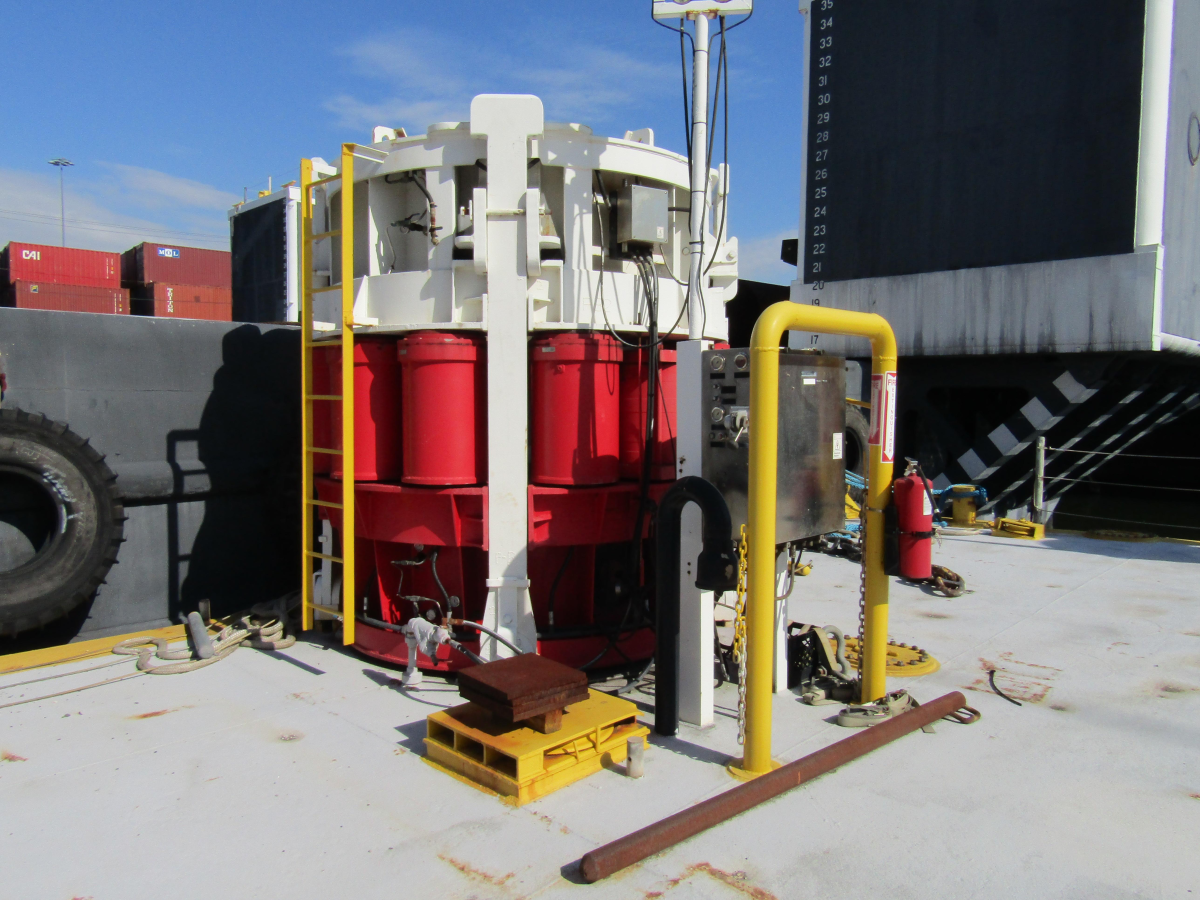

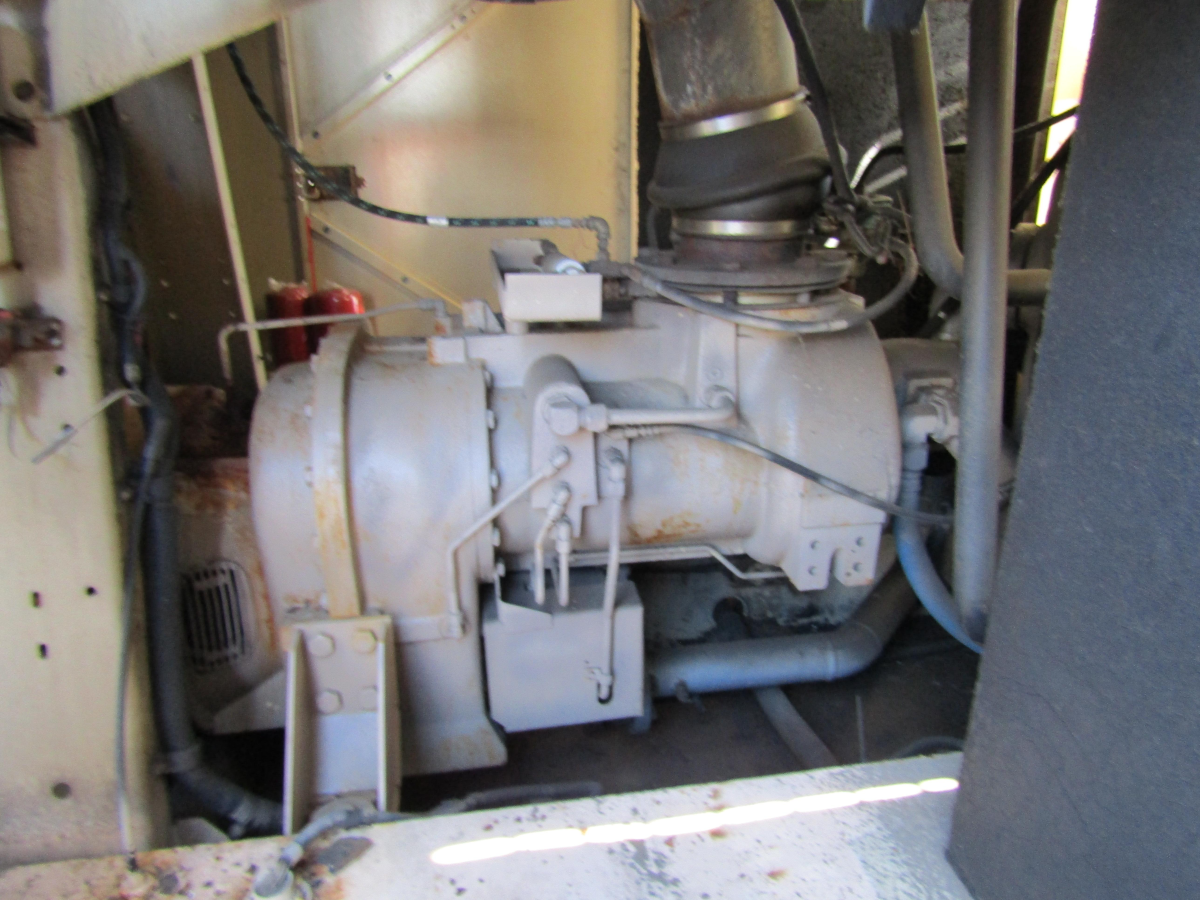

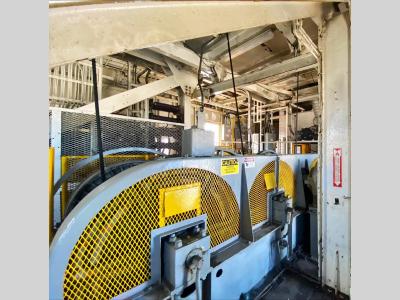

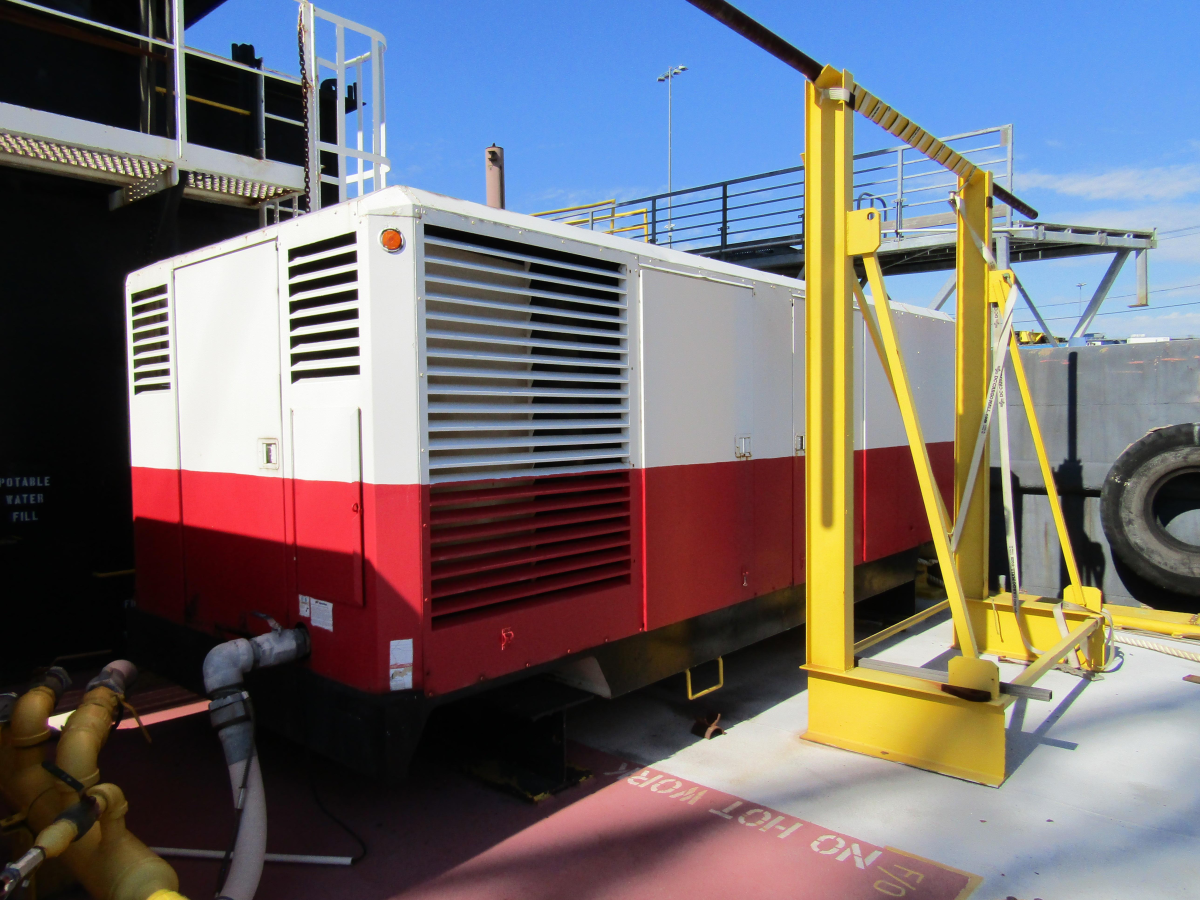

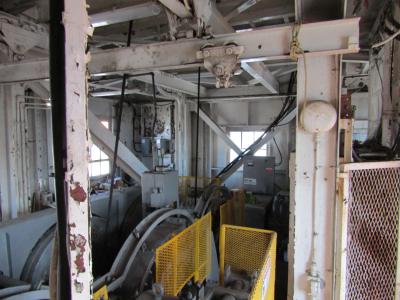

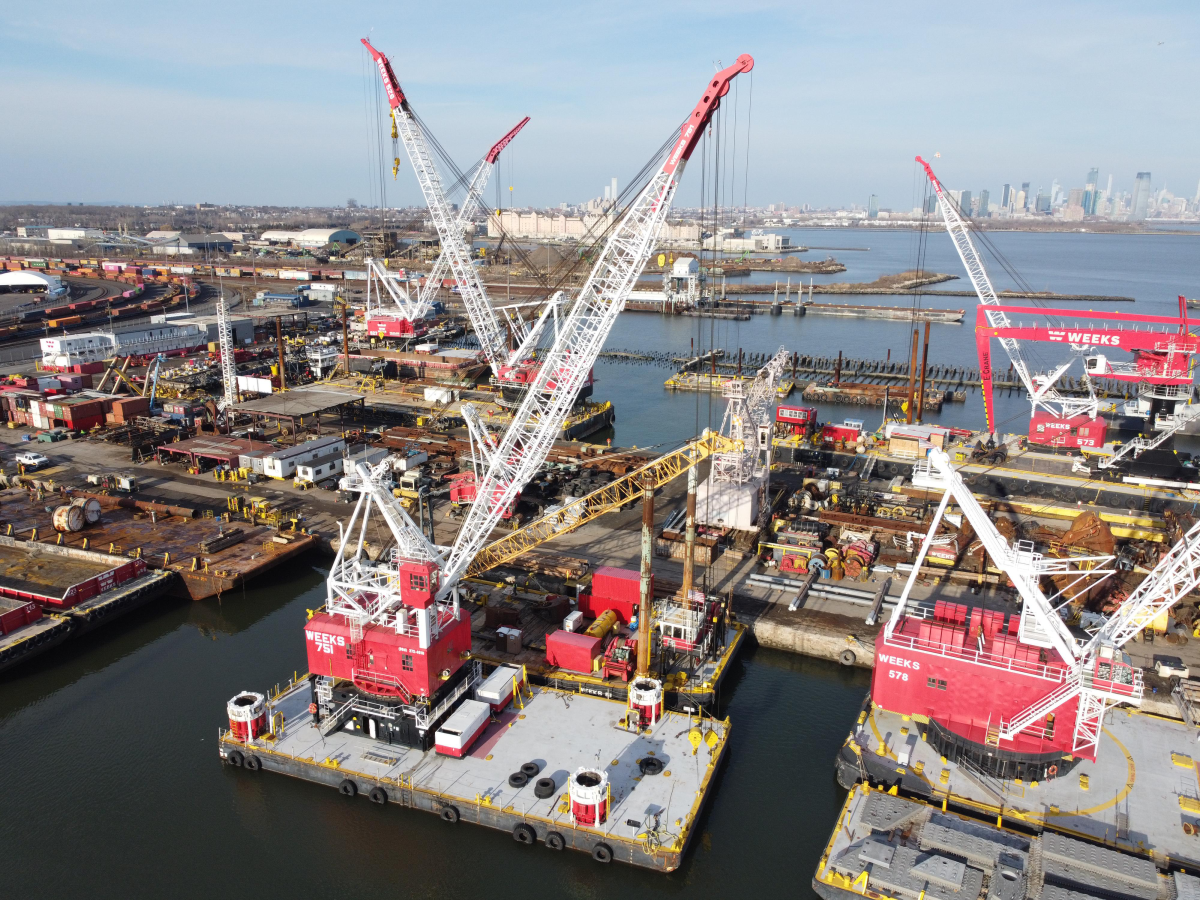

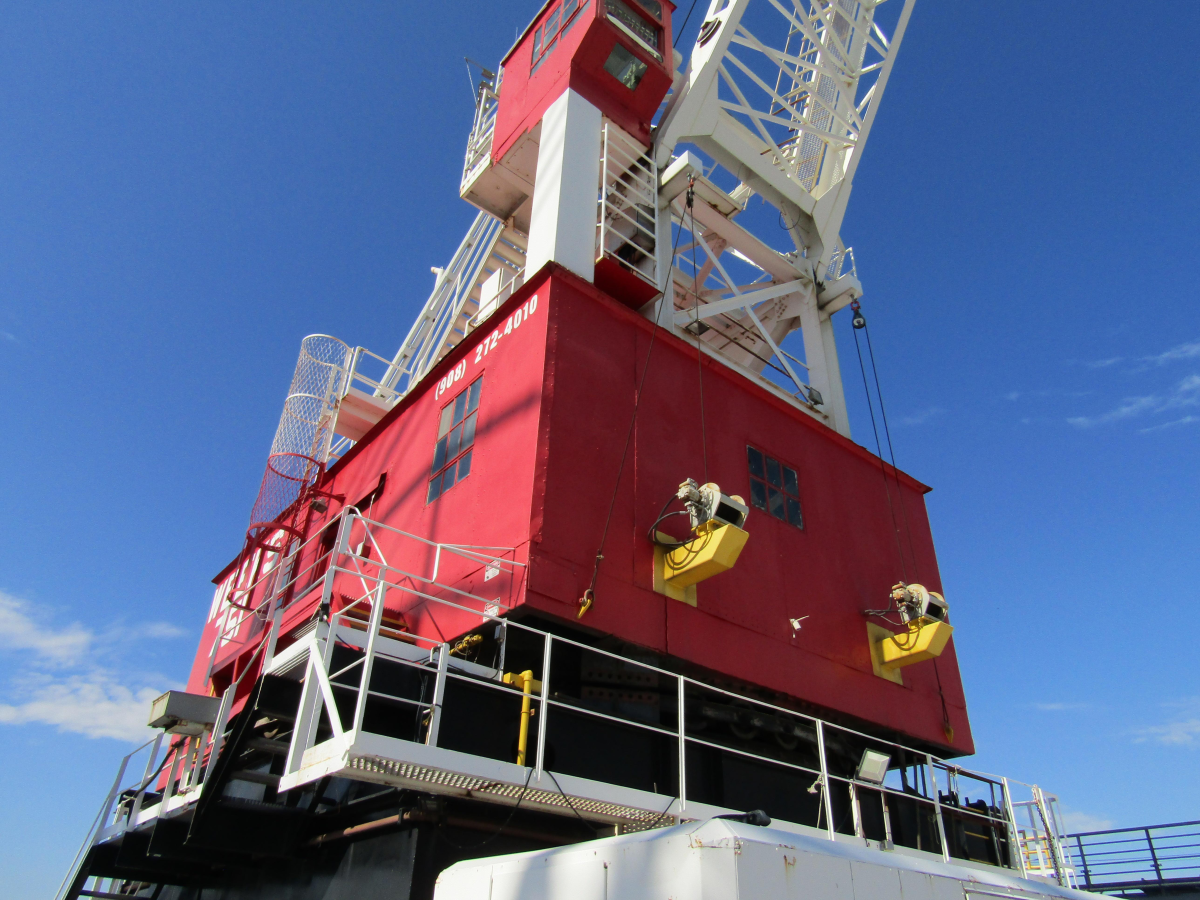

Model: Dravo 28 S/N: BD-3022 Year: Assembled hoist and barge in 2022 Main Hoist: Dravo 28 3 drum hoist Swinger Motor: General Electric 27B618, type MD 410 AE 2, 45 hp, 230V, 525 rpm Main Hoist Motor: General Electric 27B611, type MD 416 AE2, series, 230V, 135 HP, 495-amp, 410 rpm Generator Engine: John Deere 6090HFG95 Generator: Magna Plus 432PSI6210, frame 432, 250 kW, 313 KVA, 277/480Y Volts, 376 Amps, 3 phase Auxiliary Generator Engine: Kubota V3600-T-BG-ET03, 61.7 hp Auxiliary Generator: Stamford PH44K1, 40 kW, 50 kVA, 208 Volts, 3 phase Boom: 138’-5” to the main, and 148’-5” to the aux. Capacity (jacked up): 80-ton main fall, 33-ton aux. fall Capacity (legs up): 51.5-ton main fall, 33-ton aux. fall Main Blocks: 8-part Aux. Block: 3-part Boom Wire: 1-1/8” 6x19 BRT IWRC EIPS (1x2800’) Main Wire: 1-1/8” 6x19 BRT IWRC EIPS (1x2200’) Aux. Wire: 1-1/8” 6x19 BRT IWRC EIPS (900’) Tuggers: 2- Brayden PD12Cs, HPU motor: Baldor CH4115T, 50 HP, 230/460 volts, 118/59 amps, 1770 rpm, 3 phase HPU hydraulic pump: Parker PAVC100R522, 46.75 gpm,1000 psi Jack-Up Size: 130’ x 58’ x 10’ Year: Hull was originally built in 1975 and was modified in 2002 to fit the jacking legs Builder: Harve De Grave Shipbuilding and Manufacturing CO Hull fuel capacity: 30,000 gallons, Four spud wells to fit 71” diameter pipe Jack type: Four Delong D. Type, 522-ton, airbag jacks, with air powered stroking cylinders, Power Source: Two INGERSOLL-RAND XHP1170 compressors, 1170 cfm each, each powered by a Cat C15
