2010 Elrus 7X20 3-Deck

144030 | Screen Plants

$117,500 USD

3,062 hours

2010 Elrus 7X20 3-Deck

Screen Plants

$117,500 USD

Locationsanto, TX

Equipment #144030

Serial #M5184ERC10SP

Let us help

Send us a Message

First name is required
Last name is required
Company name is required
Email is required to contact you back

Thanks for contacting us! We'll get back to you soon.

This information will not be shared with any dealer other than those you select. Our collection and use of your personal information

Something must be wrong

Retry or contact us if the problem persists

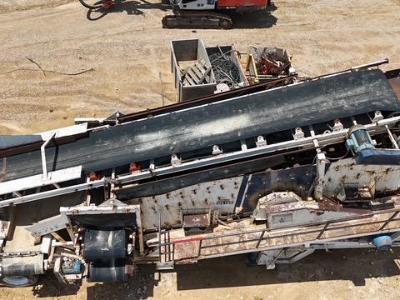

Subcategory - Screen Plants | image 0

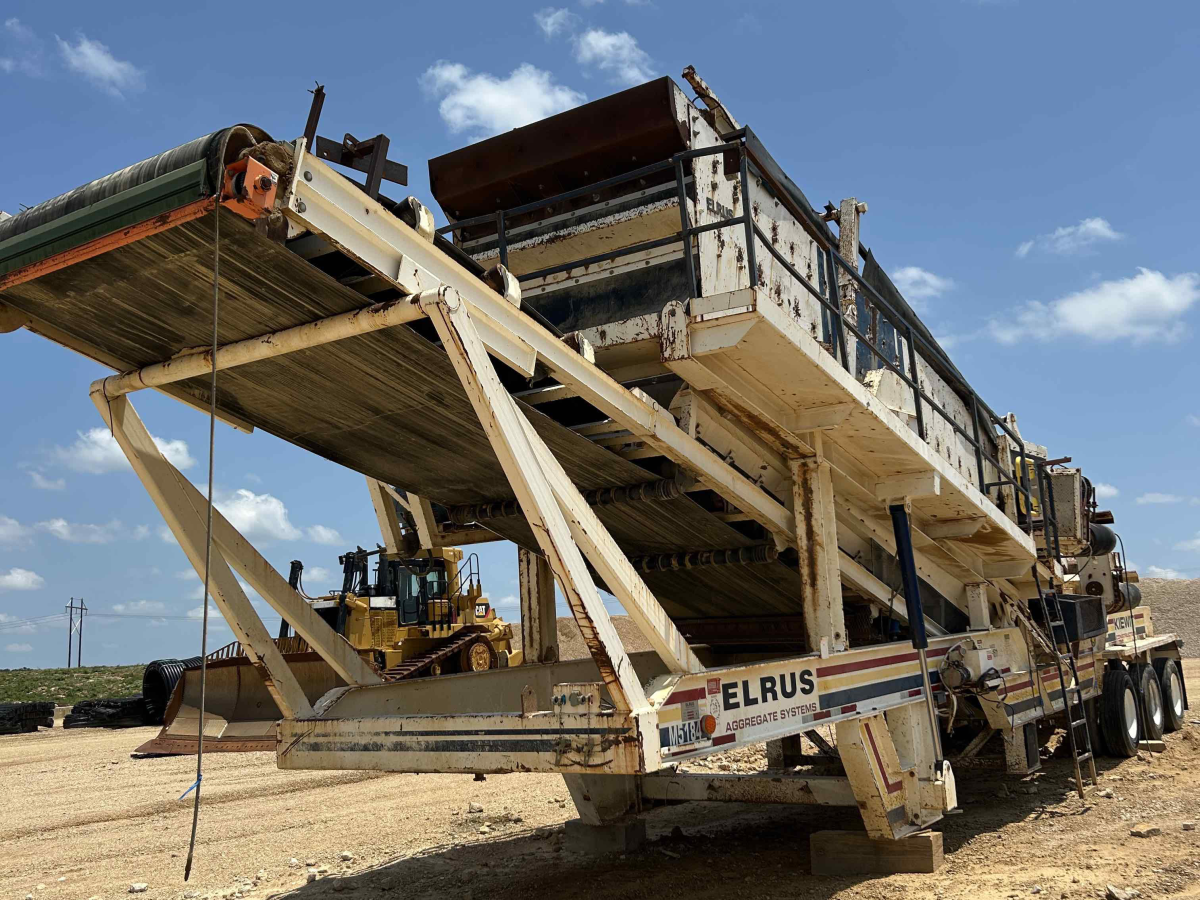

Subcategory - Screen Plants | image 1

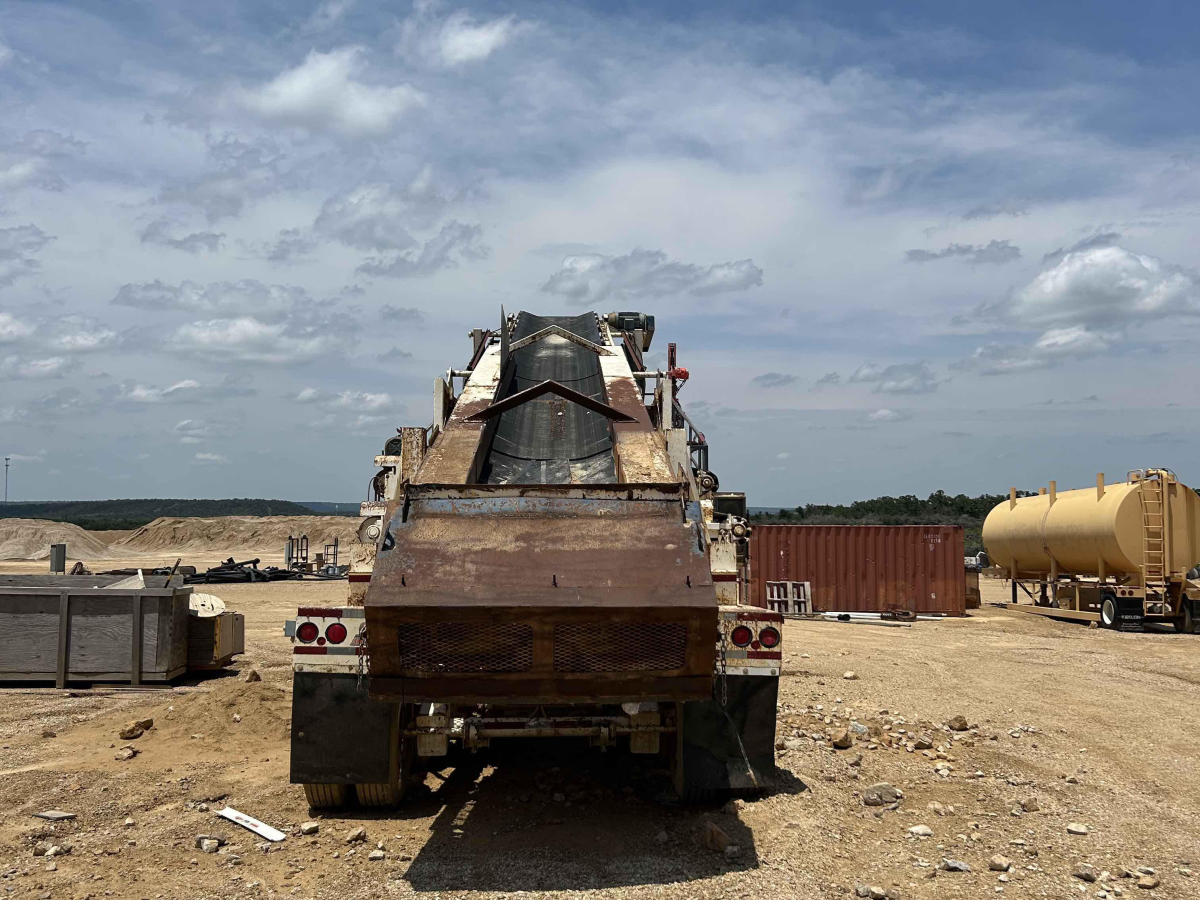

Subcategory - Screen Plants | image 2

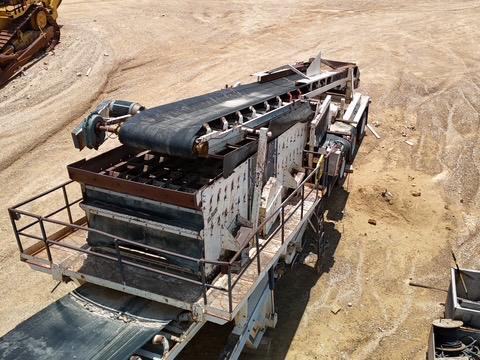

Subcategory - Screen Plants | image 3

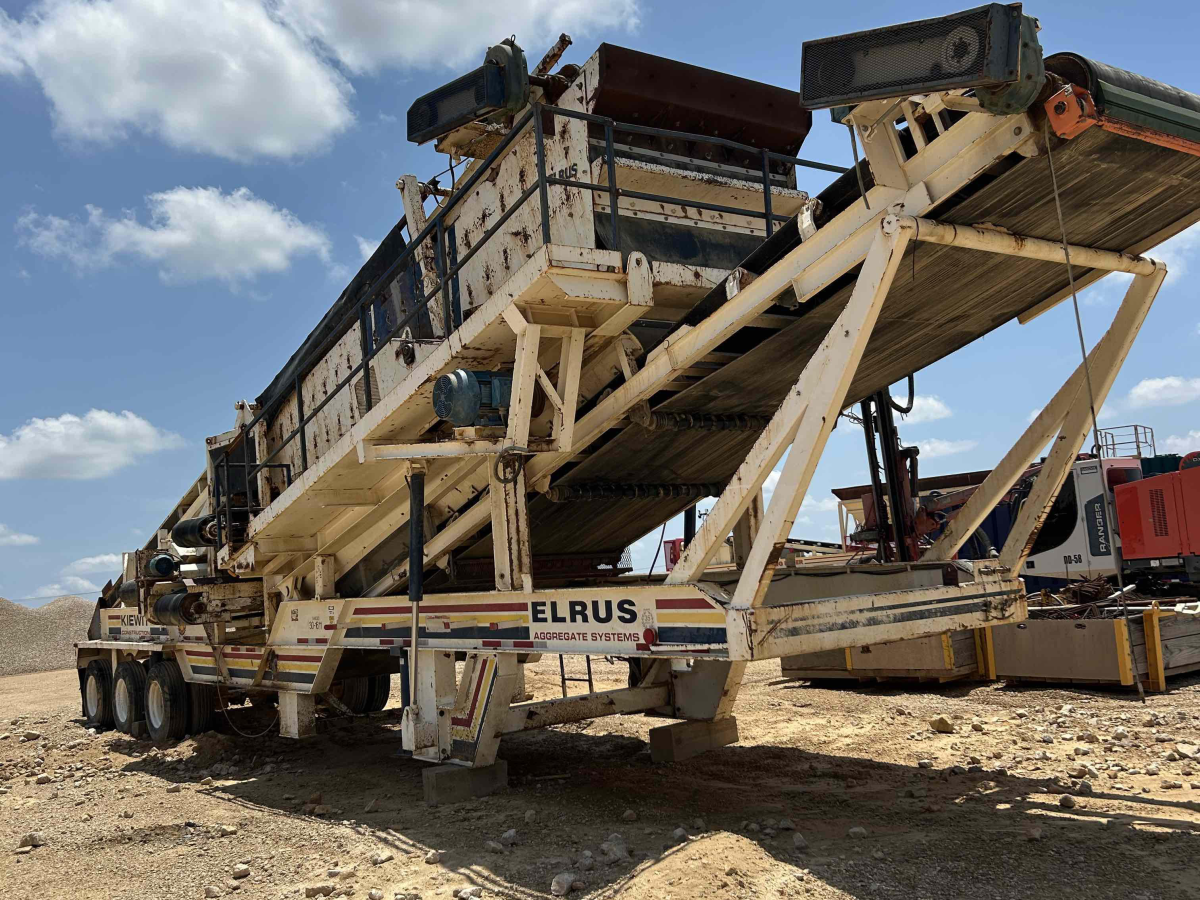

Subcategory - Screen Plants | image 4

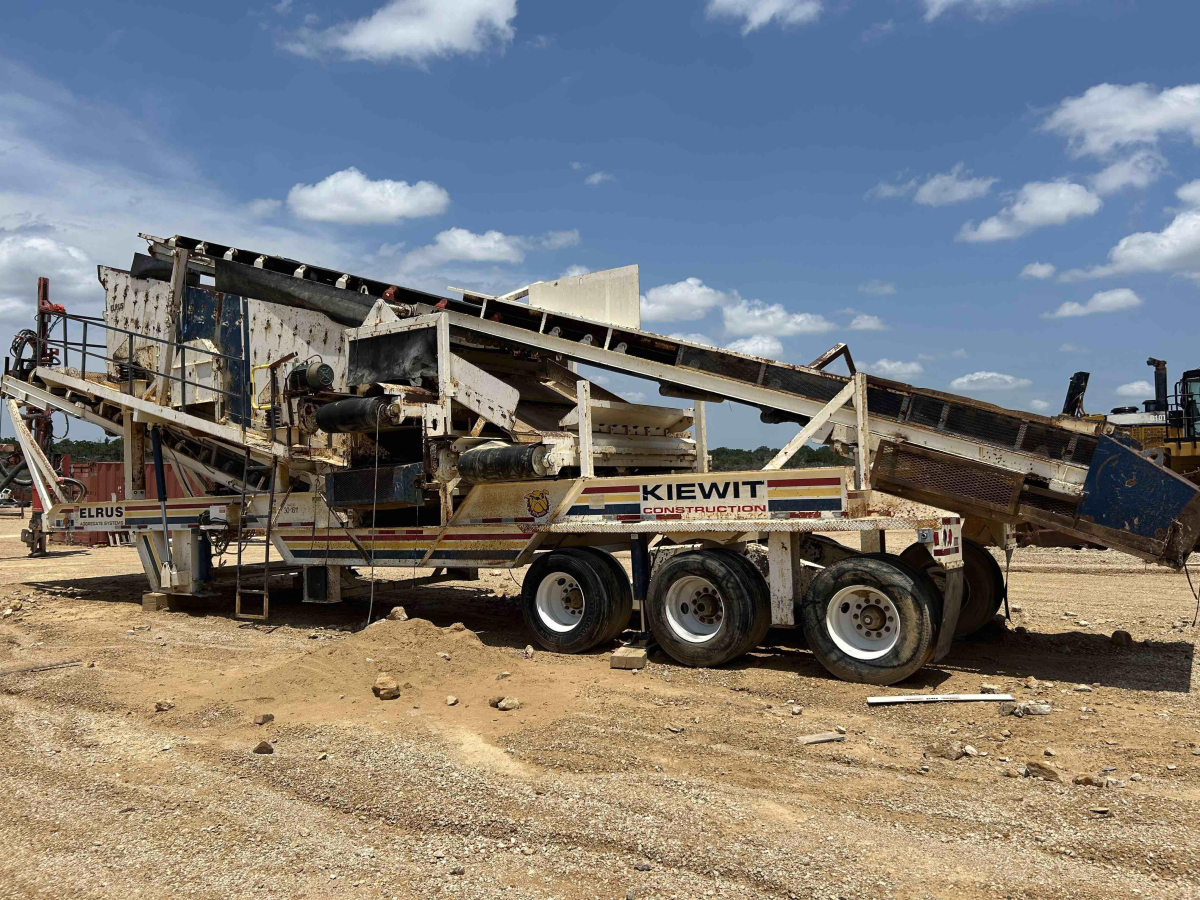

Subcategory - Screen Plants | image 5

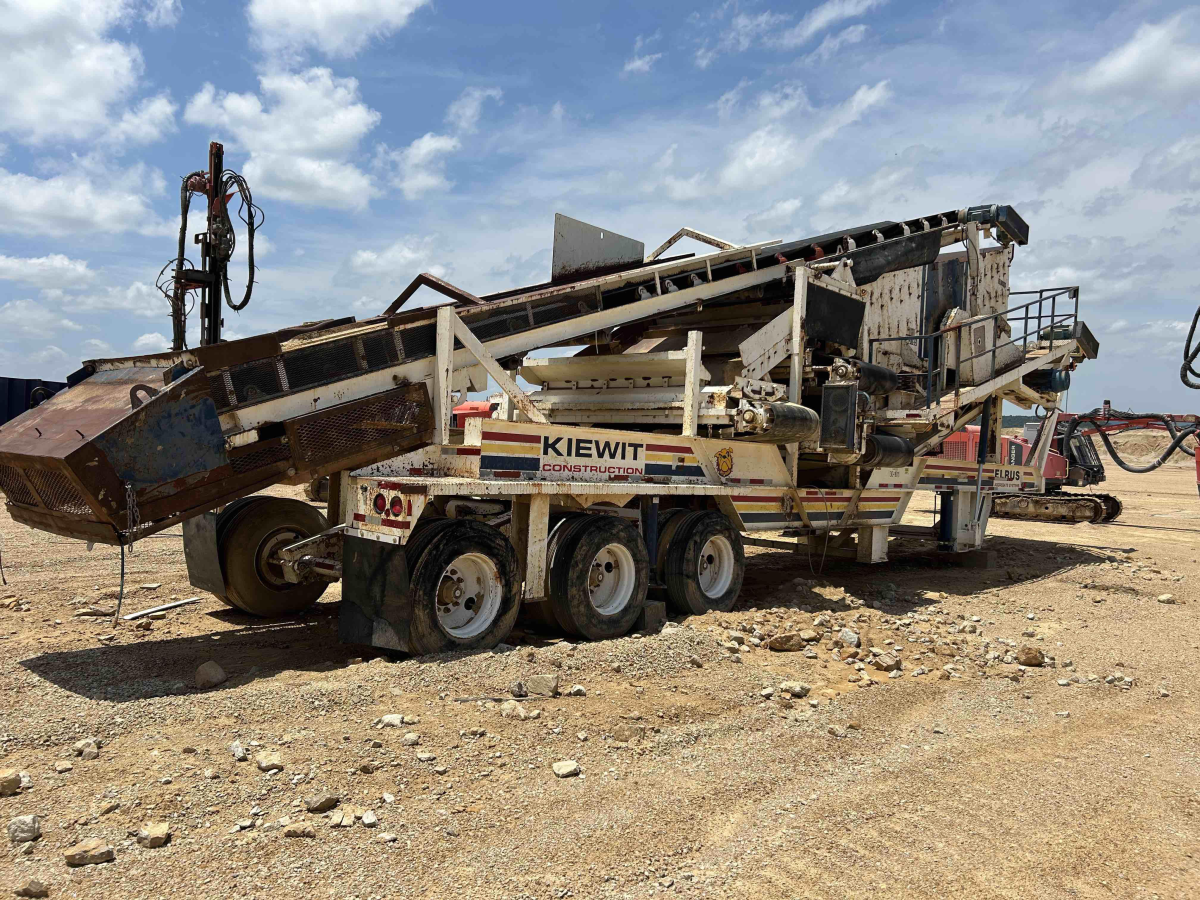

Subcategory - Screen Plants | image 6

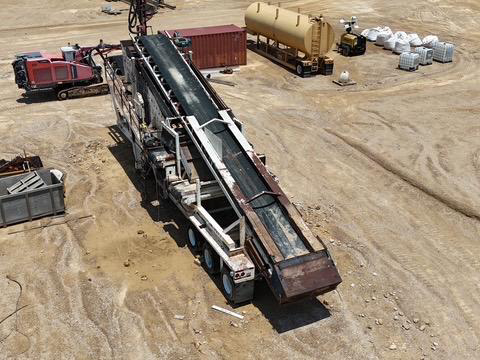

Subcategory - Screen Plants | image 7
Click to Zoom
Gallery Thumbnail - Subcategory - Screen Plants | image 0Gallery Thumbnail - Subcategory - Screen Plants | image 1Gallery Thumbnail - Subcategory - Screen Plants | image 2Gallery Thumbnail - Subcategory - Screen Plants | image 3Gallery Thumbnail - Subcategory - Screen Plants | image 4Gallery Thumbnail - Subcategory - Screen Plants | image 5Gallery Thumbnail - Subcategory - Screen Plants | image 6Gallery Thumbnail - Subcategory - Screen Plants | image 7
  • Machine Details
  • Additional Information
  • Downloads
  • Terms

Machine Details

Manufacturer

Elrus

Model

7X20 3-Deck

Year

2010

Subcategory

Screen Plants

Equipment #

144030

Serial #

M5184ERC10SP

Meter

3,062 hours

Location

santo, TX

Additional Information

2010 Elrus 7 x 20 Triple Deck Screen Plant; CHASSIS: 18" WF dropped main frame; (4) blocking legs; tandem axle walking beam suspension; 11 R x 22.5 budd wheels and tires; air brakes; running lights; mud flaps; 40 HP TEFC electric screen drive motor; walkways and ladders both sides of screen and front cross over; hydraulic raise and lower screen subframe; drive and belt guarding; return roller guards. DECK SCREEN @ 15 DEGREES – 332 SERIES: 1/2” side plates; replaceable integral discharge lips and inlet chutes; counterweights; counterweight guards; (8) 1 ¼” coil springs c/w extra wide mounting pads; (2) side tension springs. 48” x 46’ OVERHEAD CONVEYOR: 14” self cleaning tail pulley; 20 HP TEFC electric motor; Dodge TA4207 reducer; 20 degree 5” troughing idlers @ 36”; 20 degrees 5” impact idlers under receiving hopper; 5” self cleaning return rollers @ 10’ centres; 3 ply 3/16” x 1/16” Goodyear Plylon conveyor belt; belt scraper; v plow; skirt boards to fold point. 72” x 34’ UNDERSCREEN CONVEYOR: 14” rubber lagged head pulley; 14” self cleaning tail pulley; 20 HP TEFC electric motor; Dodge TA4207 reducer; 5” low profile troughing idlers @ 36” centres; 5” self cleaning return rollers @ 10’ centres; 3 ply 3/16” x 1/16” Goodyear Plylon conveyor belt; belt scrapper; v plow; choke chute. (2) 36” x 12’ 6” CROSS CONVEYORS: 12” rubber lagged head pulley; Dodge TA4207 reducer; 5 HP electric motor;
